Page Title: Beaded Retainer Rings

beaded flagpole retainer ring

The retainer ring is supplied based on the diameter of the flagpole at the base which is the butt diameter. We show the diameter of the pole, NOT the diameter of the ring

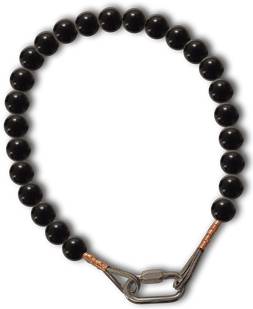

RR5 Through RR12 is configured like this:

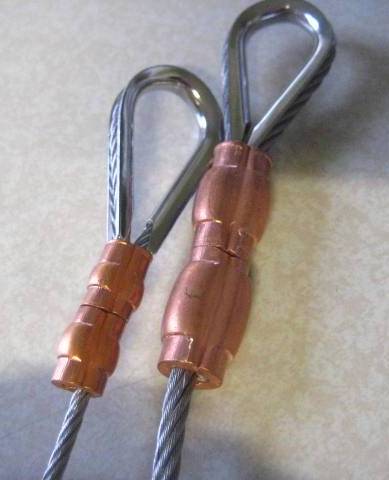

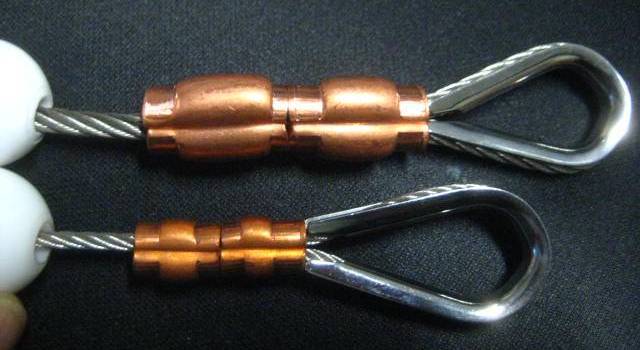

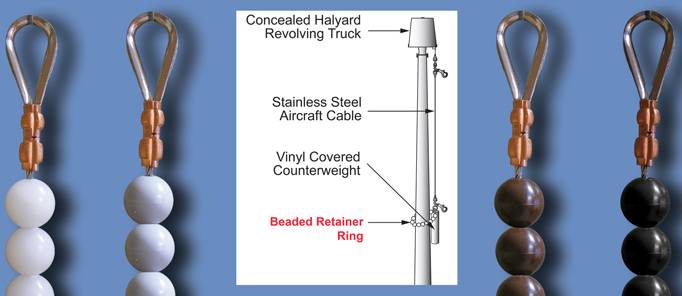

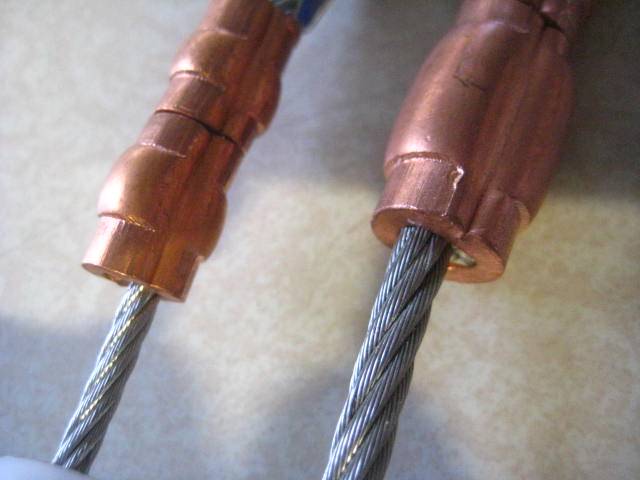

Retainer flagpole rings are generally used with internal halyard flagpoles by providing a means of keeping the bottom of the flag close to the pole and as an aid to raise and lower the flag. Retainer rings can also be used on large multi-grommet flags on both external and internal halyard flagpoles as a means to keep the flags close to the pole and reduce the strain on the upper and lower grommets of the flag. These beaded retainer rings are constructed of either 1" or combination of 1" and 2" diameter nylon balls strung onto 1/8" stainless steel aircraft cable with a stainless steel thimble attached to each end with two copper crimps. Complete with stainless steel quick link. Standard stock colors are White, Silver, and Bronze. Please specify color when ordering.

For Pole Butt Diameter Overall Length, Approx #of 1" balls White

Black

Silver (Not Pictured)

Bronze

5" 30" 24 #RR5W  $48.00 #RR5B  $55.00 #RR5S     $56.00 #RR5B2     $56.00
6" 34" 28 #RR6W  $49.00 #RR6B  $57.00 #RR6S     $58.00 #RR6B2     $58.00
7" 38" 32 #RR7W  $51.00 #RR7B  $59.00 #RR7S     $60.00 #RR7B2     $60.00
8" 41" 36 #RR8W  $52.00 #RR8B  $61.00 #RR8S     $62.00 #RR8B2     $62.00
10" 49" 44 #RR10W $57.00 #RR10B $62.00 #RR10S    $63.00 #RR10B2    $63.00
11" 52" 48 #RR11W $61.00 #RR11B $68.00 #RR11S    $69.00 #RR11B2    $69.00
12" 56" 52 #RR12W $62.00 #RR12B $71.00 #RR12S    $72.00 #RR12B2    $72.00

beaded flagpole retainer ring

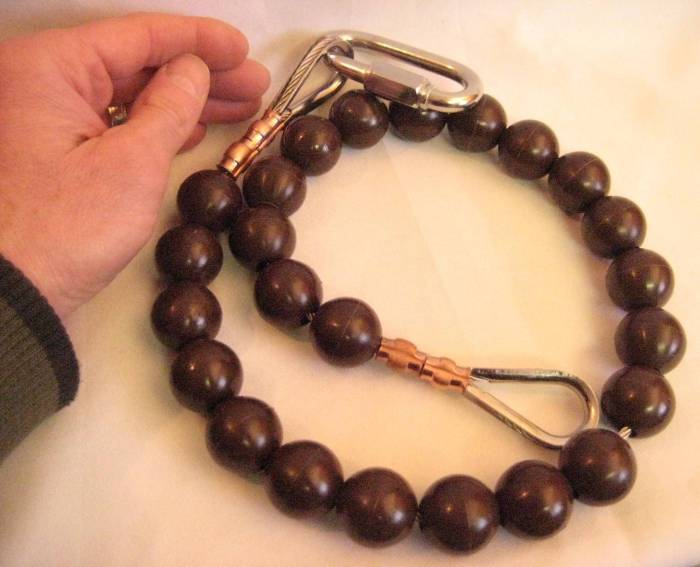

 RR13 Through RR36 is configured like this: Made with a combination of 1" and 2" balls

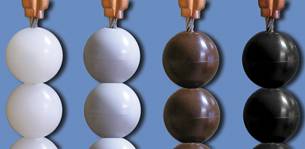

Retainer Ring Balls

Nylon Retainer Ring Balls ONLY: Drilled to be strung onto 1/8" stainless steel aircraft cable

Ball Dia Color Item # 1-99 100+
1" White RB1W $.75 ea $.59 ea
1" Silver RB1S   .85   .69
1" Bronze RB1B   .89   .72
1" Black RB1B   .91  .73
11/2" White RB15  3.25  2.50
2" White RB2  4.95  3.75



For Pole Butt Diameter #of 1" balls #of 2" balls

Overall Length, Approx

  White The ring is supplied based on the diameter of the flagpole at the base which is the butt diameter. We show the diameter of the pole, NOT the diameter of the ring
13" 34 8

62"

#RR13W $114.00 For 13" pole diameter and greater, the retainer rings come in white only
14" 36 9 66" #RR14W $120.00
16" 40 11 74" #RR16W $139.00
18" 44 13 82" #RR18W $159.00
20" 48 15 90" #RR20W $173.00
22" 52 17 98" #RR22W $185.00
24" 56 19 106" #RR24W $206.00
30" 68 25 124" #RR30W $241.00
32" 72 27 132" #RR32W $259.00
34" 76 29 140" #RR34W $281.00
36" 80 31 148" #RR36W $296.00






Stainless Steel Quick Link

Item # Length Width 1-11 12 or more
#SSQL 27/8" 13/8" $10.50 ea $7.50 ea



internal flagpole winchInternal Flagpole Trucks and Parts
